Harvey Tool
12967-C3

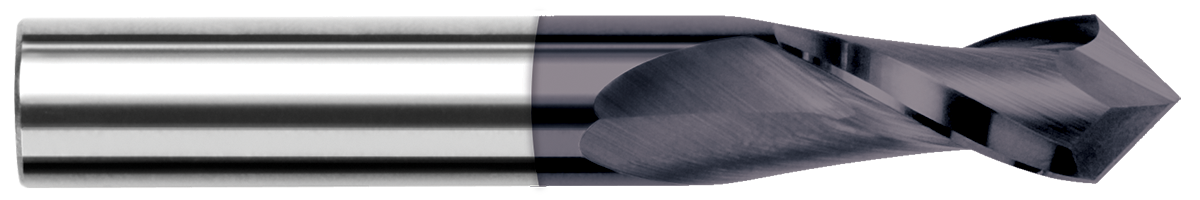

Drill/End Mill - Drill Style - 2 Flute
Specifications
| Short Description | 0.0200" (.5 mm) Cutter DIA x 0.0630" LOC x 120° included - 2 FL - AlTiN Coated |
|---|---|
| Long Description | 0.0200" (.5 mm) Cutter DIA x 0.0630" Length of Cut x 120° included Carbide Drill/End Mill, 2 Flutes, AlTiN Coated |
| Point Angle | 120 |
| Included Angle | 120 |
| LOC Multiple | (3x) |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0200" (.5 mm) |
| Profile | Drill Style |
| Metric | N |
| Coating | C3 |
| Length of Cut | 0.0630" |
