Harvey Tool
14063

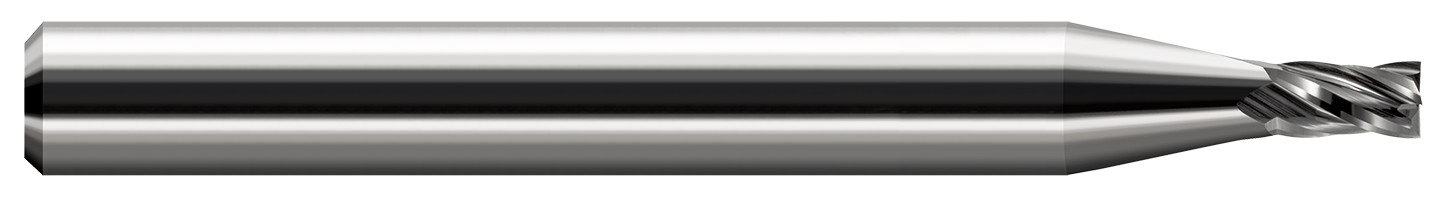

Miniature End Mill - Square - Stub & Standard
Specifications
| Long Description | 0.0630" (1.6 mm) Cutter DIA x 0.0950" Length of Cut Carbide Square End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.0630" (1.6 mm) Cutter DIA x 0.0950" LOC |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (1.5x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0630" (1.6 mm) |
| Profile | Square |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.0950" |
