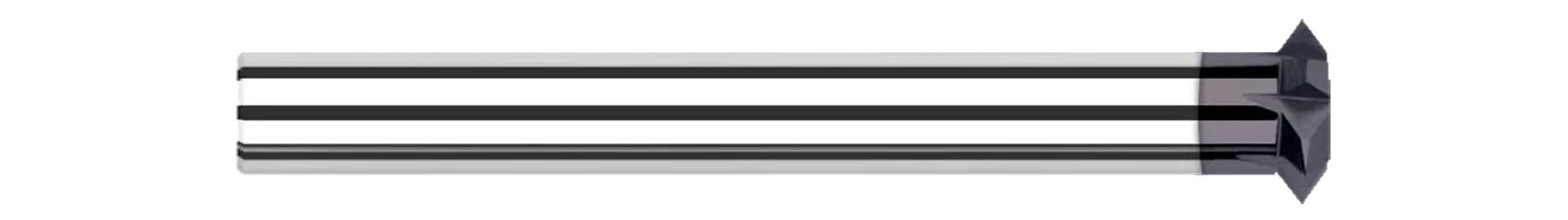

Harvey Tool
16230
HT - 16230
Specifications
| Overall Length (Inch) | 4.22 |
|---|---|
| Diameter (Inch) | 1 |
| Coating/Finish | UN |
| Short Description | 1.0000" (1) Cutter DIA x 0.2170" Width - 60° Included Angle - 8 FL |
| Long Description | 1.0000" (1) Cutter DIA x 0.2170" Width Carbide Reduced Shank Double Angle Shank Cutter, 8 Flutes |
| Shank Size | 5/8 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.63 |
| Number Of Flutes | 8 |
| Angle per Side | 30 Degrees |
| Metric | No |
| Cutter Width | 0.22 Inch |
| Base Item Number | 16230 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.6250" (5/8) |
| Weight | 0.395 |
| Overall Length | 4.2170" |
| Cutter Diameter | 1.0000" (1) |
| Profile | Pointed |
