Harvey Tool
16901-C3

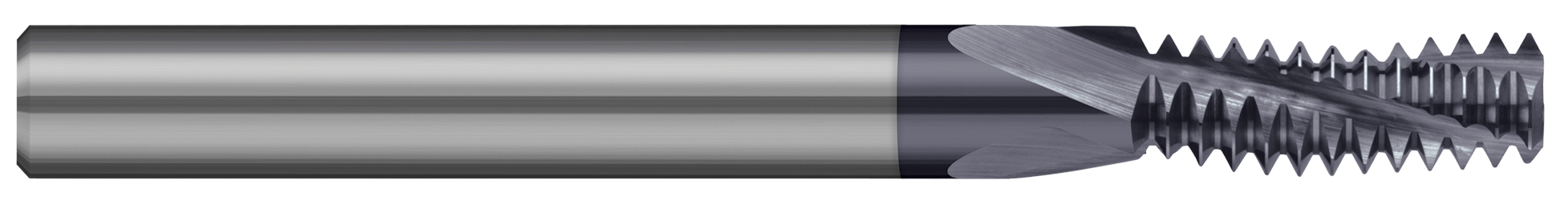

Thread Milling Cutter - Multi-Form - Metric
Specifications
| Short Description | M2-0.40 - 0.0590" (1.5 mm) Cutter DIA x 0.1260" LOC - 3 FL - AlTiN Coated |
|---|---|
| Long Description | 0.0590" (1.5 mm) Cutter DIA x 0.1260" Length of Cut Carbide Multi-Form M2-0.40 Thread Milling Cutter, 3 Flutes, AlTiN Coated |
| Included Angle | 60 |
| Metric | N |
| Size | M2-0.40 |
| Coating | C3 |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| Weight | 0.011 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.0590" (1.5 mm) |
| Profile | Multi-Form |
| Length of Cut | 0.1260" |
