Harvey Tool
16902

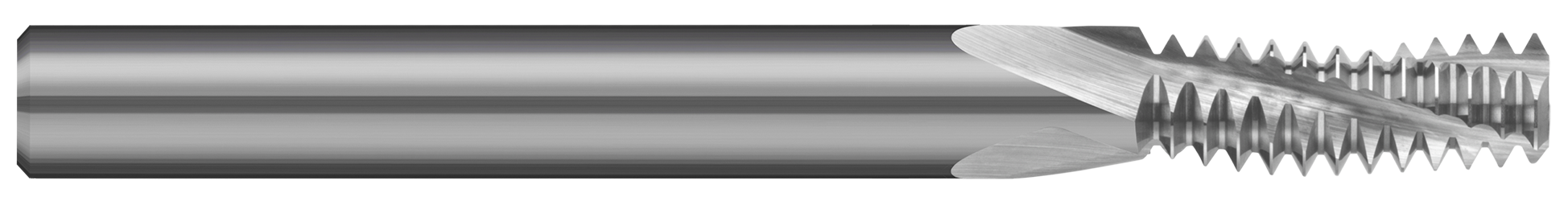

Thread Milling Cutter - Multi-Form - Metric
Specifications
| Short Description | M2.5-0.45 - 0.0590" (1.5 mm) Cutter DIA x 0.1420" LOC - 3 FL |
|---|---|
| Long Description | 0.0590" (1.5 mm) Cutter DIA x 0.1420" Length of Cut Carbide Multi-Form M2.5-0.45 Thread Milling Cutter, 3 Flutes |
| Included Angle | 60 |
| Metric | N |
| Size | M2.5-0.45 |
| Coating | UN |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| Weight | 0.011 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.0590" (1.5 mm) |
| Profile | Multi-Form |
| Length of Cut | 0.1420" |
