Harvey Tool
16929
HT - 16929
Specifications
| Overall Length (Inch) | 3 |
|---|---|
| Diameter (Inch) | 0.3 |
| Length Of Cut (Inch) | 3/4 |
| Coating/Finish | UN |
| Short Description | M10-1.50 - 0.3000" Cutter DIA x 0.7500" (3/4) LOC - 4 FL |

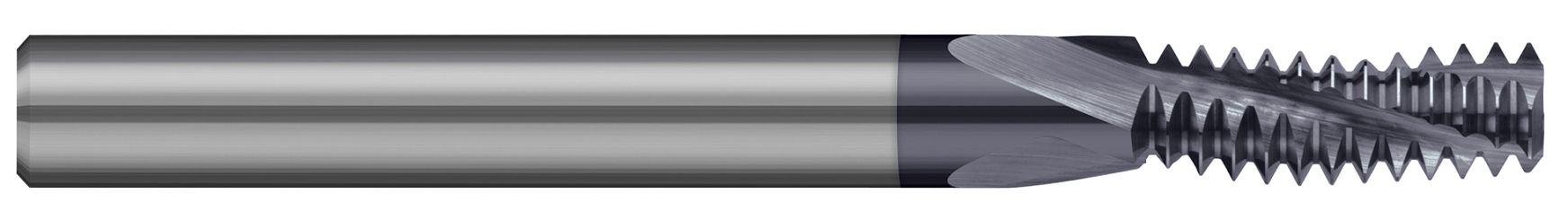

| Long Description | 0.3000" Cutter DIA x 0.7500" (3/4) Length of Cut Carbide Multi-Form M10-1.50 Thread Milling Cutter, 4 Flutes |
| Shank Size | 5/16 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.32 |
| Number Of Flutes | 4 |
| Metric | No |
| Length of Cut (Decimal) | 0.75 |
| Size | M10-1.50 |
| Base Item Number | 16929 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.3125" (5/16) |
| Weight | 0.104 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.3000" |
| Profile | Multi-Form |
| Length of Cut | 0.7500" (3/4) |
