Harvey Tool
17354
HT - 17354
Specifications
| Overall Length (Inch) | 2-3/8 |
|---|---|
| Diameter (Inch) | 0.24 |
| Length Of Cut (Inch) | 5/8 |
| Coating/Finish | UN |
| Short Description | 5/16-18 - 0.2350" Cutter DIA x 0.6250" (5/8) LOC - 3 FL |

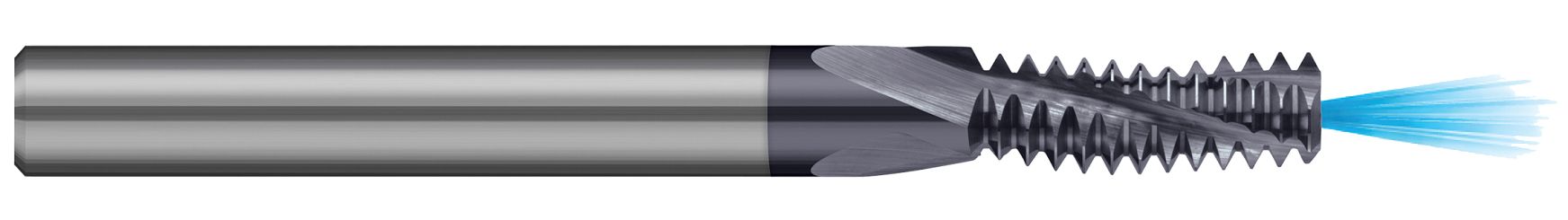

| Long Description | 0.2350" Cutter DIA x 0.6250" (5/8) Length of Cut Carbide Multi-Form 5/16-18 Thread Milling Cutter Coolant Through, 3 Flutes |
| Shank Size | 1/4 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.25 |
| Number Of Flutes | 3 |
| Metric | No |
| Length of Cut (Decimal) | 0.63 |
| Size | 5/16-18 |
| Coolant Through | Yes |
| Base Item Number | 17354 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.2500" (1/4) |
| Weight | 0.049 |
| Overall Length | 2.3750" (2-3/8) |
| Cutter Diameter | 0.2350" |
| Profile | Multi-Form |
| Length of Cut | 0.6250" (5/8) |
