Harvey Tool
17960
Combined Drill & Countersinks
Specifications

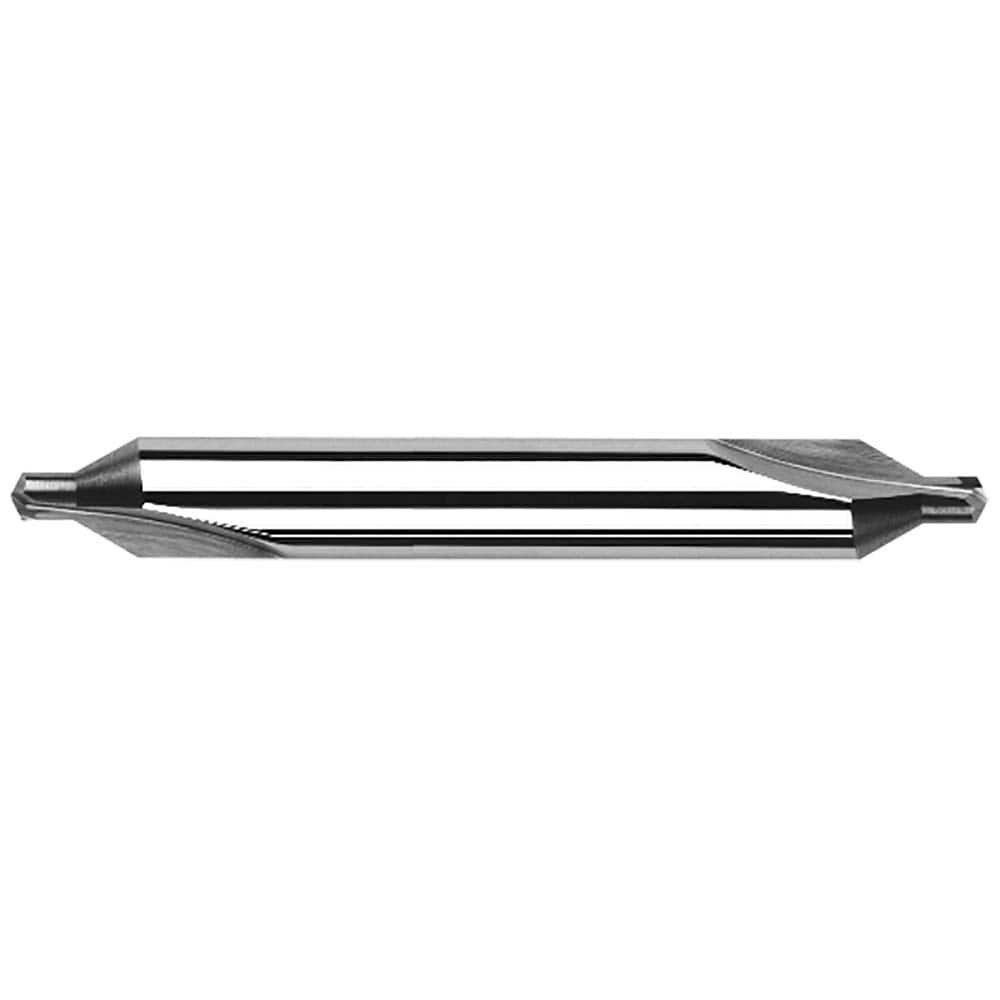

| Long Description | 0.1250" (1/8) Drill DIA x 90° Included Carbide #4 Combined Drill & Countersink DE, 2 Flutes |
|---|---|
| Short Description | #4 - 0.1250" (1/8) Drill DIA x 90° Included - DE - 2 FL |
| Shank Diameter | 0.3125" (5/16) |
| Flutes | 2 |
| Weight | 0.075 |
| Double Ended | Y |
| Overall Length | 2.5000" (2-1/2) |
| Profile | Drill |
| Metric | N |
| Coating | UN |
| Size | 4 |
| Length of Cut | 0.2560" |
| Point Angle | 118 |
| Angle per Side | 45 |
| Included Angle | 90 |
