Harvey Tool
19502-C6

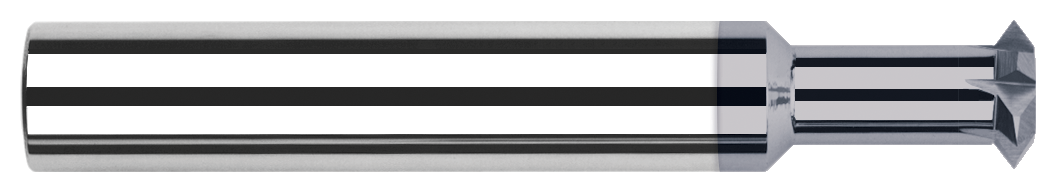

Double Angle Shank Cutter - Pointed
Specifications
| Type | I |
|---|---|
| Short Description | 0.1875" (3/16) Cutter DIA x 0.0950" Width x 0.7500" (3/4) Neck Length - 90° Included Angle - 4 FL - AlTiN Nano Coated |
| Long Description | 0.1875" (3/16) Cutter DIA x 0.0950" Width x 0.7500" (3/4) Neck Length Carbide Double Angle Shank Cutter, 4 Flutes, AlTiN Nano Coated |
| Included Angle | 90 |
| Angle per Side | 45 |
| Metric | N |
| Cutter Width | 0.0950" |
| Coating | C6 |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 4 |
| Weight | 0.029 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1875" (3/16) |
| Profile | Pointed |
| Neck Diameter | 0.0930" (3/32) |
| Neck Length | 0.7500" (3/4) |
