Harvey Tool
20098-C4

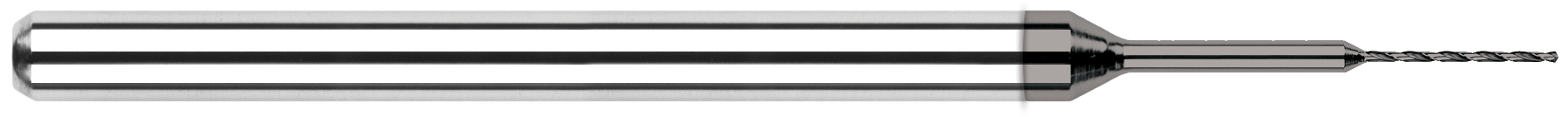

Miniature Drill
Specifications
| Short Description | 0.0098" Drill DIA x 0.1600" Flute Length - 2 FL - Amorphous Diamond Coated |
|---|---|
| Point Angle | 130 |
| Long Description | 0.0098" Drill DIA x 0.1600" Flute Length Carbide Drill, 2 Flutes, Amorphous Diamond Coated |
| Weight | 0.009 |
| Shank Diameter | 0.1250" (1/8) |
| Flute Length | 0.1600" |
| Flutes | 2 |
| Overall Length | 1.5000" (1-1/2) |
| Profile | Drill |
| Metric | N |
| Neck Diameter | 0.0280" (.7 mm) |
| Coating | C4 |
