Harvey Tool
23504-C3
HT - 23504-C3
Specifications
| Coating/Finish | C3 |
|---|---|
| Overall Length (Inch) | 2 |
| Diameter (Inch) | 3/16 |
| Short Description | 0.1875" (3/16) Cutter DIA x 0.0180" Width x 0.1250" (1/8) Neck Length - Slotting - 6 FL - AlTiN Coated |

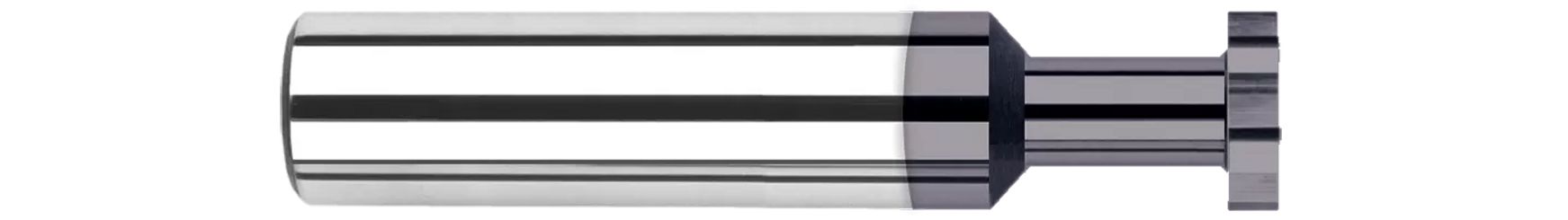

| Long Description | 0.1875" (3/16) Cutter DIA x 0.0180" Width x 0.1250" (1/8) Neck Length Carbide Retaining Ring Keyseat Cutter, 6 Flutes, AlTiN Coated |
| Cutter Width | 0.02 Inch |
| Shank Size (Fraction) | 3/16 Inch |
| Neck Diameter | 1/8 Inch |
| Shank Size (Decimal) | 0.19 |
| Neck Diameter (Decimal) | 0.13 |
| Number Of Flutes | 6 |
| Neck Length (Decimal) | 0.13 |
| Neck Length (Fraction) | 1/8 |
| Radial Depth of Cut (Decimal) | 0.03 |
| Base Item Number | 23504-C3 |
| Neck Diameter (Inch) | 0.13 |
| Product Type | Industrial Supplies |
