Harvey Tool
23574-C3

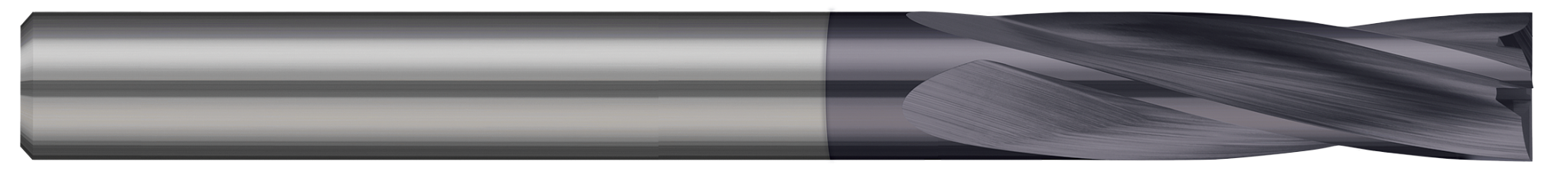

Counterbores - Flat Bottom
Specifications
| Long Description | 0.1750" Cutter DIA x 0.6250" (5/8) Flute Length Carbide Flat Bottom Counterbore, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 0.1750" Cutter DIA x 0.6250" (5/8) Flute Length - 4 FL - AlTiN Coated |
| Shank Diameter | 0.1875" (3/16) |
| Flute Length | 0.6250" (5/8) |
| Flutes | 4 |
| Weight | 0.024 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1750" |
| Profile | Square |
| Metric | N |
| Coating | C3 |
