Harvey Tool
23708
HT - 23708
Specifications
| Overall Length (Inch) | 1-1/2 |
|---|---|
| Type | II |
| Length Of Cut (Inch) | 0.04 |
| Coating/Finish | UN |
| Short Description | 0.1250" (1/8) Shank DIA x 120° included - 2 FL |

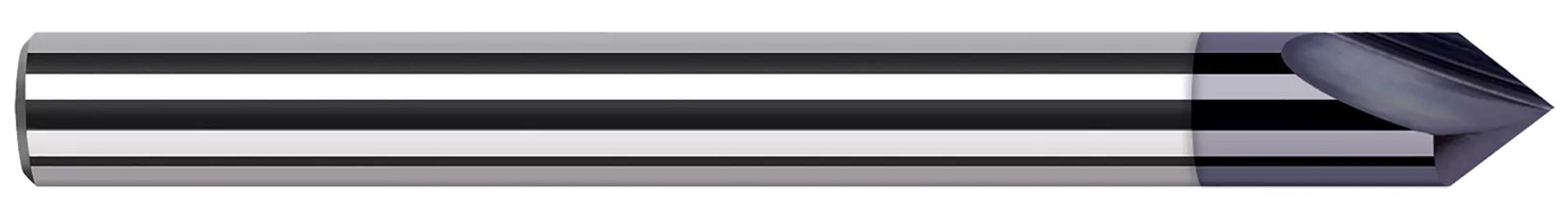

| Long Description | 0.1250" (1/8) Shank DIA x 120° included Carbide Marking Cutter, 2 Flutes |
| Metric | No |
| Shank Size | 1/8 Inch |
| Included Angle | 120 Degrees |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 2 |
| Web Thickness (Decimal) | 0.005 |
| Angle per Side | 60 Degrees |
| Base Item Number | 23708 |
| Product Type | Industrial Supplies |
