Harvey Tool
23821
HT - 23821
Specifications
| Overall Length (Inch) | 2 |
|---|---|
| Diameter (Inch) | 11/64 |
| Coating/Finish | UN |
| Corner Radius (Decimal) | 0.03 |
| Neck Diameter (Decimal) | 0.12 |
| Short Description | 0.1720" (11/64) Cutter DIA x 0.0310" (1/32) Radius x 48° included - 2 FL |

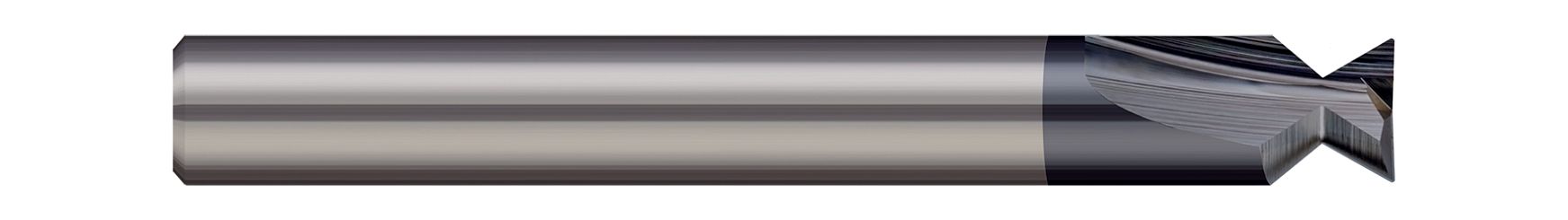

| Long Description | 0.1720" (11/64) Cutter DIA x 0.0310" (1/32) Radius x 48° included Carbide Dovetail Cutter with Drop Hole Allowance, 2 Flutes |
| Shank Size | 3/16 Inch |
| Included Angle | 48 Degrees |
| Number Of Flutes | 2 |
| Corner Radius (Fraction) | 1/32 |
| Neck Radius (Decimal) | 0.01 |
| Angle per Side | 24 Degrees |
| O Ring X Section (Decimal) | 0.14 |
| Radius Center (Decimal) | 0.11 |
| Metric | N |
| Base Item Number | 23821 |
| Neck Diameter (Inch) | 0.12 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1875" (3/16) |
| Weight | 0.026 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1720" (11/64) |
| Profile | Corner Radius |
| Neck Diameter | 0.1160" |
| Corner Radius | 0.0310" (1/32) |
| Neck Radius | 0.0100" |
