Harvey Tool
23942
HT - 23942
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Diameter (Metric) | 8 |
| Diameter (Inch) | 0.32 |
| Coating/Finish | UN |
| Corner Radius (Decimal) | 0.09 |
| Neck Diameter (Decimal) | 0.13 |
| Short Description | 0.3150" (8 mm) Cutter DIA x 0.0930" (3/32) Radius x 48° included - 2 FL |

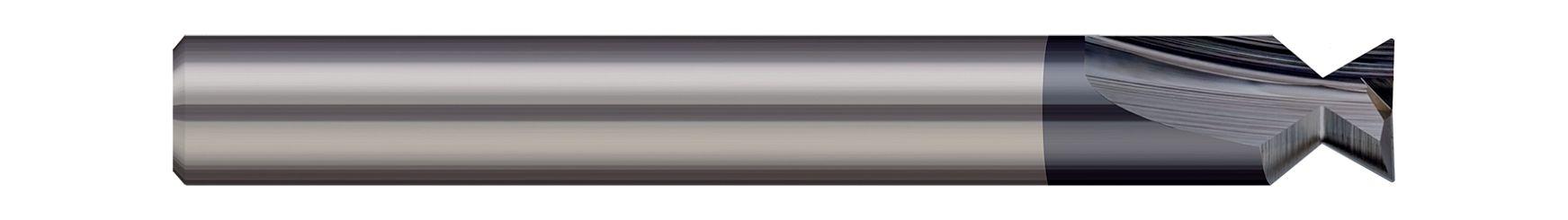

| Long Description | 0.3150" (8 mm) Cutter DIA x 0.0930" (3/32) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes |
| Shank Size | 3/8 Inch |
| Included Angle | 48 Degrees |
| Number Of Flutes | 2 |
| Corner Radius (Fraction) | 3/32 |
| Angle per Side | 24 Degrees |
| O Ring X Section (Decimal) | 0.38 |
| O Ring X Section (Fraction) | 3/8 |
| Metric | N |
| Base Item Number | 23942 |
| Neck Diameter (Inch) | 0.13 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.3750" (3/8) |
| Weight | 0.119 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.3150" (8 mm) |
| Profile | Dovetail |
| Neck Diameter | 0.1280" |
| Length of Cut | 0.3230" |
| Corner Radius | 0.0930" (3/32) |
