Harvey Tool
25522-C3

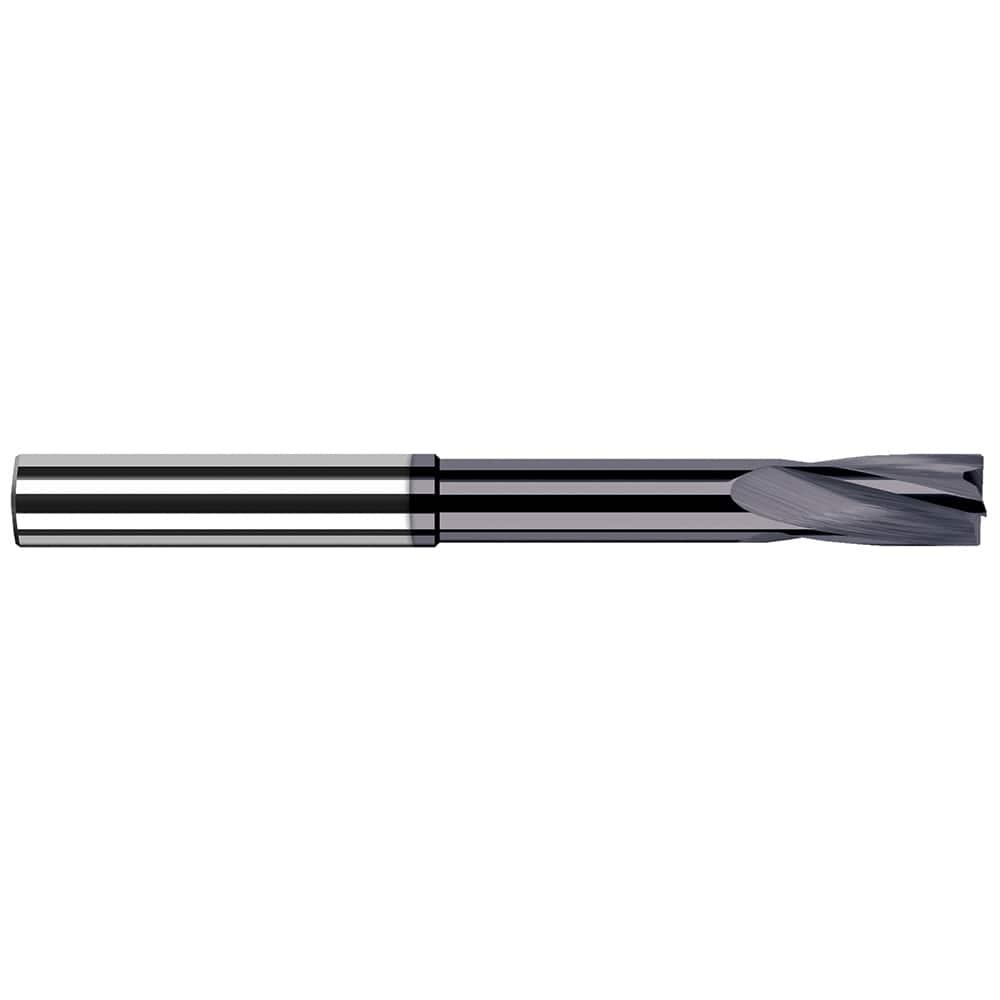

Counterbores - Flat Bottom - Long Reach
Specifications
| Long Description | 0.3437" (11/32) Cutter DIA x 1.0000" (1) Flute Length x 2.7500" (2-3/4) Reach Carbide Flat Bottom Counterbore, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 0.3437" (11/32) Cutter DIA x 1.0000" (1) Flute Length x 2.7500" (2-3/4) Reach - 4 FL - AlTiN Coated |
| Shank Diameter | 0.3750" (3/8) |
| Flute Length | 1.0000" (1) |
| Flutes | 4 |
| Weight | 0.159 |
| Overall Length | 4.0000" (4) |
| Cutter Diameter | 0.3437" (11/32) |
| Profile | Square |
| Metric | N |
| Neck Diameter | 0.2920" |
| Coating | C3 |
