Harvey Tool
27448
HT - 27448
Specifications
| Coating/Finish | UN |
|---|---|
| Overall Length (Inch) | 4 |
| Number Of Flutes | 4 |
| Length Of Cut (Inch) | 1-1/2 |
| Short Description | 0.7500" (3/4) Cutter DIA x 1.5000" (1-1/2) LOC x 100° included - 4 FL |

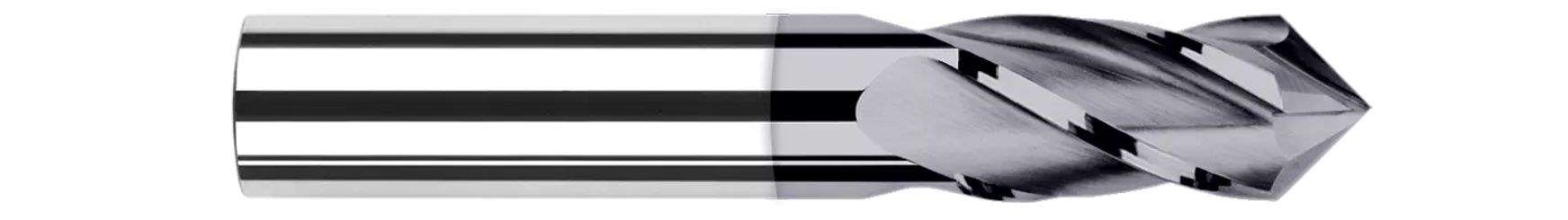

| Long Description | 0.7500" (3/4) Cutter DIA x 1.5000" (1-1/2) Length of Cut x 100° included Carbide Drill/End Mill, 4 Flutes |
| Shank Size | 3/4 Inch |
| Cutter Diameter (Fraction) | 3/4 |
| Included Angle | 100 Degrees |
| LOC Multiple | 2x |
| Angle per Side | 50 Degrees |
| Web Thickness (Decimal) | 0.01 |
| Base Item Number | 27448 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.7500" (3/4) |
| Weight | 0.765 |
| Overall Length | 4.0000" (4) |
| Cutter Diameter | 0.7500" (3/4) |
| Profile | Mill Style |
| Metric | N |
| Length of Cut | 1.5000" (1-1/2) |
