Harvey Tool
28516-C3
HT - 28516-C3
Specifications
| Overall Length (Inch) | 2 |
|---|---|
| Diameter (Inch) | 1/4 |
| Length Of Cut (Inch) | 5/32 |
| Coating/Finish | C3 |
| Corner Radius (Decimal) | 0.01 |
| Neck Diameter (Decimal) | 0.15 |

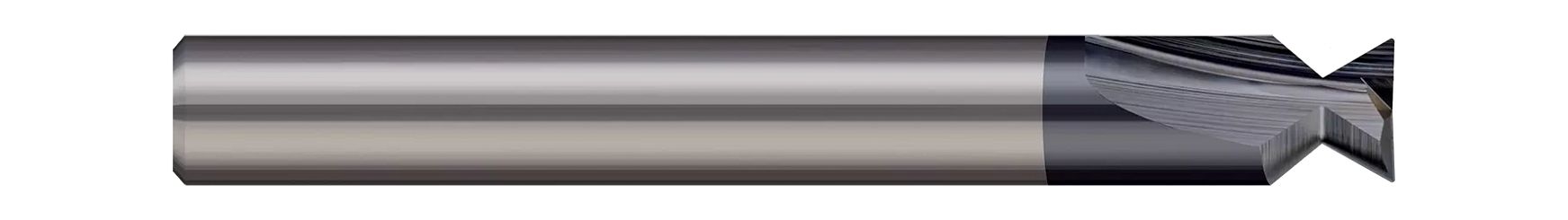

| Short Description | 0.2500" (1/4) Cutter DIA x 0.0100" Radius x 40° included - 2 FL - AlTiN Coated |
| Long Description | 0.2500" (1/4) Cutter DIA x 0.0100" Radius x 40° included Carbide Dovetail Cutter, 2 Flutes, AlTiN Coated |
| Shank Size | 1/4 Inch |
| Included Angle | 40 Degrees |
| Number Of Flutes | 2 |
| Angle per Side | 20 Degrees |
| Metric | N |
| Base Item Number | 28516-C3 |
| Neck Diameter (Inch) | 0.15 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.2500" (1/4) |
| Weight | 0.049 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Tip Radius |
| Neck Diameter | 0.1450" |
| Length of Cut | 0.1560" (5/32) |
| Corner Radius | 0.0100" |
