Harvey Tool
30230-C4

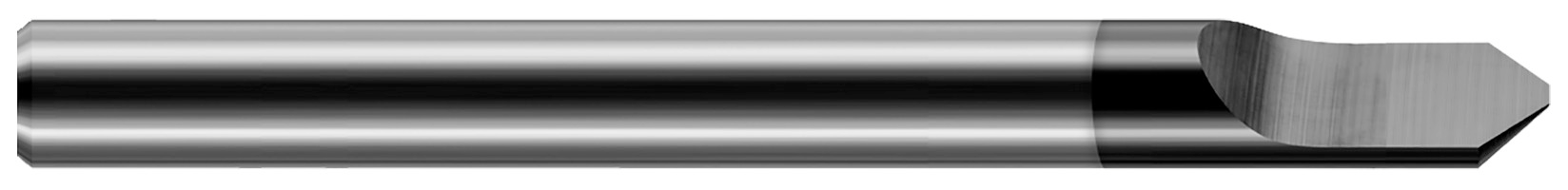

Engraving Cutter - Tipped Off
Specifications
| Type | II |
|---|---|
| Short Description | 0.2500" (1/4) Shank DIA x 0.0100" Flat x 60° included - 1 FL - Amorphous Diamond Coated |
| Long Description | 0.2500" (1/4) Shank DIA x 0.0100" Flat x 60° included Carbide Tipped Engraver, 1 Flute, Amorphous Diamond Coated |
| Metric | N |
| Included Angle | 60 |
| Angle per Side | 30 |
| Coating | C4 |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 1 |
| Weight | 0.057 |
| Overall Length | 2.5000" (2-1/2) |
| Profile | Flat |
| Length of Cut | 0.2070" |
