Harvey Tool
33213-C4

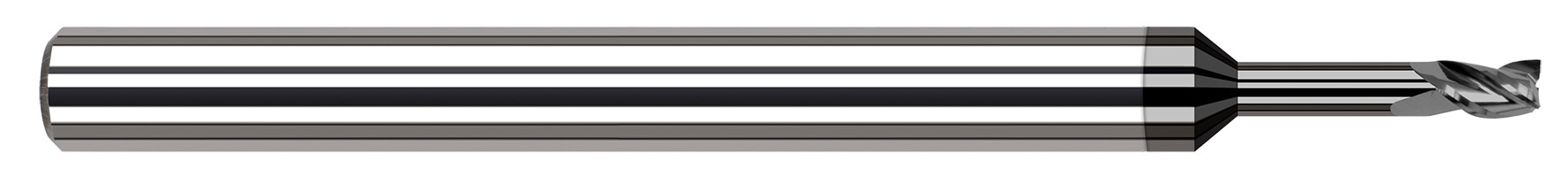

Miniature End Mill - 3 Flute - Square
Specifications
| Long Description | 0.0130" Cutter DIA x 0.0190" Length of Cut x 0.0650" Reach Carbide Square End Mill, 3 Flutes, Amorphous Diamond Coated |
|---|---|
| Short Description | 3 FL - 0.0130" Cutter DIA x 0.0190" LOC x 0.0650" Reach - Amorphous Diamond Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (1.5x) |
| Weight | 0.018 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0130" |
| Profile | Square |
| Reach Multiple | (5x) |
| Metric | N |
| Neck Diameter | 0.0122" |
| Coating | C4 |
| Length of Cut | 0.0190" |
