Harvey Tool
33520-C3

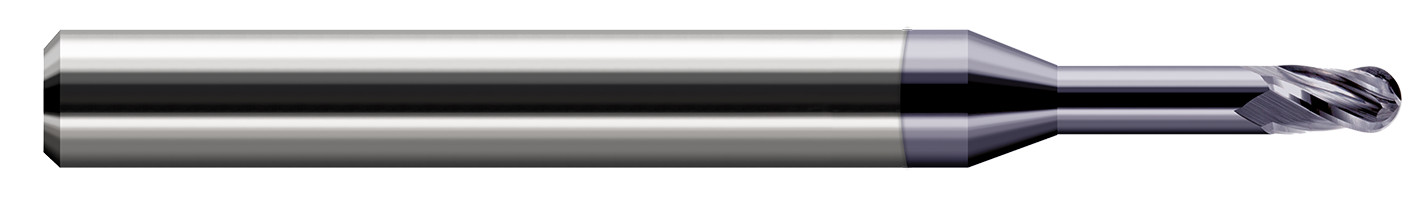

Miniature End Mill - Ball - Long Reach, Stub Flute
Specifications
| Long Description | 0.3125" (5/16) Cutter DIA x 0.4700" Length of Cut x 1.6250" (1-5/8) Reach Carbide Ball End Mill, 3 Flutes, AlTiN Coated |
|---|---|
| Short Description | 3 FL - 0.3125" (5/16) Cutter DIA x 0.4700" LOC x 1.6250" (1-5/8) Reach - AlTiN Coated |
| Shank Diameter | 0.3125" (5/16) |
| Flutes | 3 |
| LOC Multiple | (1.5x) |
| Weight | 0.15 |
| Overall Length | 4.0000" (4) |
| Cutter Diameter | 0.3125" (5/16) |
| Profile | Ball |
| Reach Multiple | (5x) |
| Metric | N |
| Neck Diameter | 0.3080" |
| Coating | C3 |
| Length of Cut | 0.4700" |
