Harvey Tool
34205

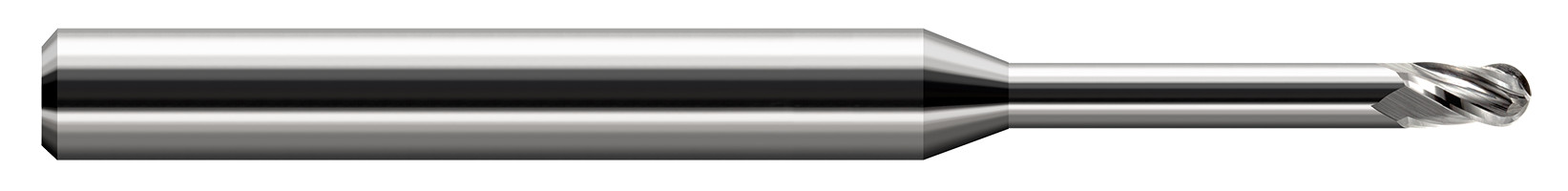

Miniature End Mill - Ball - Long Reach, Stub Flute
Specifications
| Long Description | 0.0050" Cutter DIA x 0.0070" Length of Cut x 0.0400" Reach Carbide Ball End Mill, 3 Flutes |
|---|---|
| Short Description | 3 FL - 0.0050" Cutter DIA x 0.0070" LOC x 0.0400" Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (1.5x) |
| Weight | 0.015 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0050" |
| Profile | Ball |
| Reach Multiple | (8x) |
| Metric | N |
| Neck Diameter | 0.0045" |
| Coating | UN |
| Length of Cut | 0.0070" |
