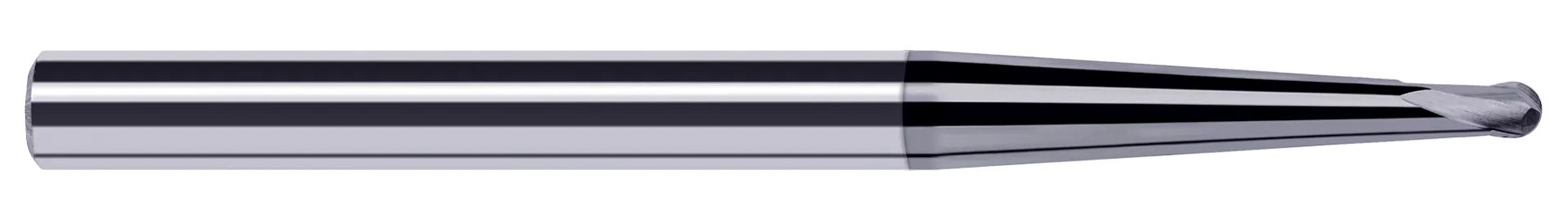

Harvey Tool
36916-C6
HT - 36916-C6
Specifications
| Coating/Finish | C6 |
|---|---|
| Overall Length (Inch) | 2-1/2 |
| Length Of Cut (Inch) | 0.03 |
| Type | I |
| Shank Size (Inch) | 3/16 |
| Number Of Flutes | 2 |
| Neck Diameter (Decimal) | 0.07 |
| Shank Diameter | 0.1875" (3/16) |
| Overall Length | 2-1/2 Inch |
| Length of Cut | 0.03 Inch |
| Shank Size | 3/16 Inch |
| Metric | No |
| Cutter Diameter (Decimal) | 0.04 |
| Cutter Diameter (Fraction) | 1/32 |
| LOC Multiple | 0.8x |
| Neck Angle | 3 |
| Overall Reach (Decimal) | 0.43 |
| Tapered Reach (Decimal) | 0.32 |
| Tapered Reach (Fraction) | 5/16 |
| Base Item Number | 36916-C6 |
| Neck Diameter (Inch) | 0.07 |
| Product Type | Industrial Supplies |
| Weight | 0.031 |
| Cutter Diameter | 0.0310" (1/32) |
| Profile | Ball |
| Neck Diameter | 0.0610" |
