Harvey Tool
38216-C3
HT - 38216-C3
Specifications
| Type | II |
|---|---|
| Overall Length (Inch) | 2-1/2 |
| Coating/Finish | C3 |
| Shank Size (Inch) | 1/4 |
| Number Of Flutes | 2 |
| Flute Length (Inch) | 3/4 |
| Diameter (Inch) | 1/4 |

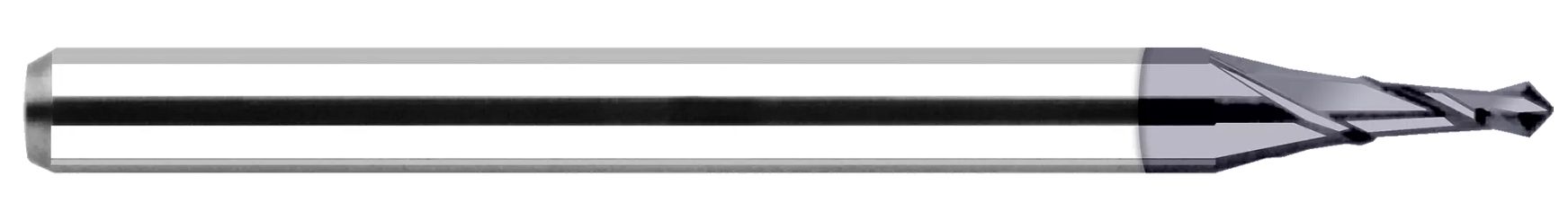

| Short Description | 0.2500" (1/4) Drill DIA x 0.7500" (3/4) Flute Length- 120° - 2 FL - AlTiN Coated |
| Long Description | 0.2500" (1/4) Drill DIA x 0.7500" (3/4) Flute Length, 120° Carbide Spot Drill, 2 Flutes, AlTiN Coated |
| Diameter | 1/4 Inch |
| Included Angle | 120 Degrees |
| Angle per Side | 60 Degrees |
| Web Thickness (Decimal) | 0.018 |
| LOC Multiple | 3x |
| Base Item Number | 38216-C3 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.2500" (1/4) |
| Flute Length | 0.7500" (3/4) |
| Weight | 0.055 |
| Overall Length | 2.5000" (2-1/2) |
| Profile | Drill |
| Metric | N |
