Harvey Tool
41016-C8

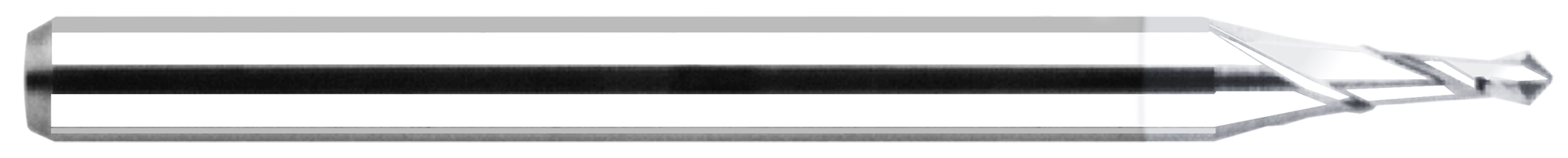

Miniature Drill - Spotting Drill
Specifications
| Coating | C8 |
|---|---|
| Long Description | 0.2500" (1/4) Drill DIA x 0.7500" (3/4) Flute Length, 140° Carbide Spot Drill, 2 Flutes, TiB2 Coated |
| Short Description | 0.2500" (1/4) Drill DIA x 0.7500" (3/4) Flute Length- 140° - 2 FL - TiB2 Coated |
| Type | II |
| Shank Diameter | 0.2500" (1/4) |
| Flute Length | 0.7500" (3/4) |
| Flutes | 2 |
| LOC Multiple | (3x) |
| Weight | 0.055 |
| Overall Length | 2.5000" (2-1/2) |
| Profile | Drill |
| Metric | N |
| Angle per Side | 70 |
| Included Angle | 140 |
