Harvey Tool
42409-C3

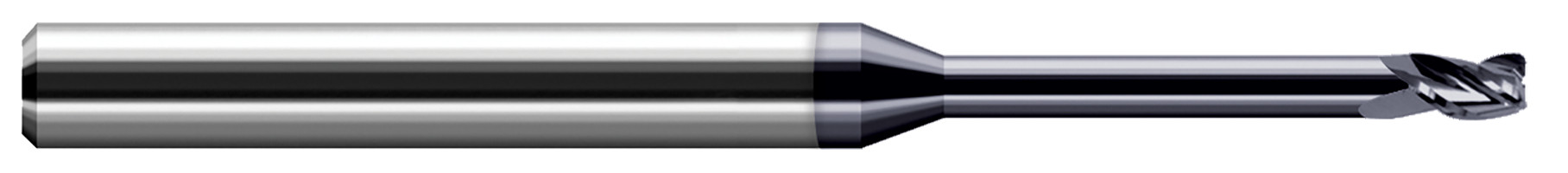

Miniature End Mill - 3 Flute - Corner Radius
Specifications
| Long Description | 0.1406" (9/64) Cutter DIA x 0.0300" Radius x 0.2200" Length of Cut x 1.1250" (1-1/8) Reach Carbide Corner Radius End Mill, 3 Flutes, AlTiN Coated |
|---|---|
| Short Description | 3 FL - 0.1406" (9/64) Cutter DIA x 0.0300" Radius x 0.2200" LOC x 1.1250" (1-1/8) Reach - AlTiN Coated |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 3 |
| LOC Multiple | (1.5x) |
| Weight | 0.035 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.1406" (9/64) |
| Profile | Corner Radius |
| Reach Multiple | (8x) |
| Metric | N |
| Neck Diameter | 0.1360" |
| Coating | C3 |
| Length of Cut | 0.2200" |
| Corner Radius | 0.0300" |
