Harvey Tool
44670
HT - 44670
Specifications
| Coating/Finish | UN |
|---|---|
| Type | I |
| Overall Length (Inch) | 3 |
| Diameter (Inch) | 1/2 |
| Short Description | 0.5000" (1/2) Cutter DIA x 0.0100" Radius x 0.1870" (3/16) Width x 0.7500" (3/4) Neck Length - Standard Slotting - 8 FL |

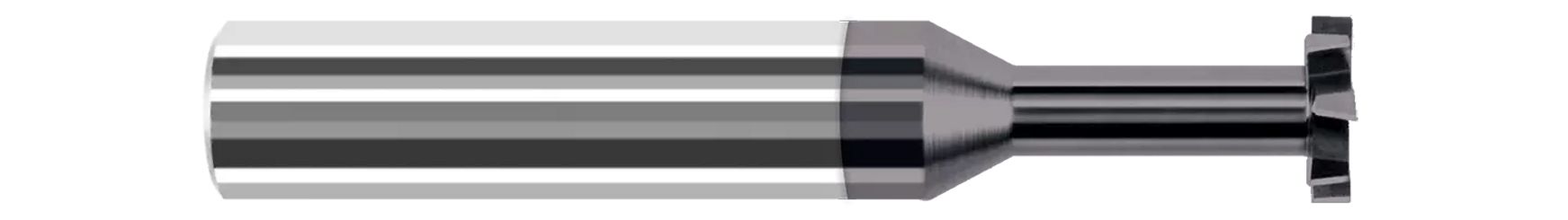

| Long Description | 0.5000" (1/2) Cutter DIA x 0.0100" Radius x 0.1870" (3/16) Width x 0.7500" (3/4) Neck Length CarbideCorner Radius Standard Stagger Keyseat Cutter, 8 Flutes |
| Cutter Width | 3/16 Inch |
| Shank Size (Fraction) | 1/2 Inch |
| Neck Diameter | 1/4 Inch |
| Cutter Width (Decimal) | 0.19 |
| Shank Size (Decimal) | 0.5 |
| Neck Diameter (Decimal) | 0.25 |
| Number Of Flutes | 8 |
| Corner Radius (Decimal) | 0.01 |
| Neck Length (Decimal) | 0.75 |
| Neck Length (Fraction) | 3/4 |
| Radial Depth of Cut (Decimal) | 0.12 |
| Reach Multiple | 1.5x |
| Top Corner Radius | 0.01 |
| Base Item Number | 44670 |
| Neck Diameter (Inch) | 0.25 |
| Product Type | Industrial Supplies |
