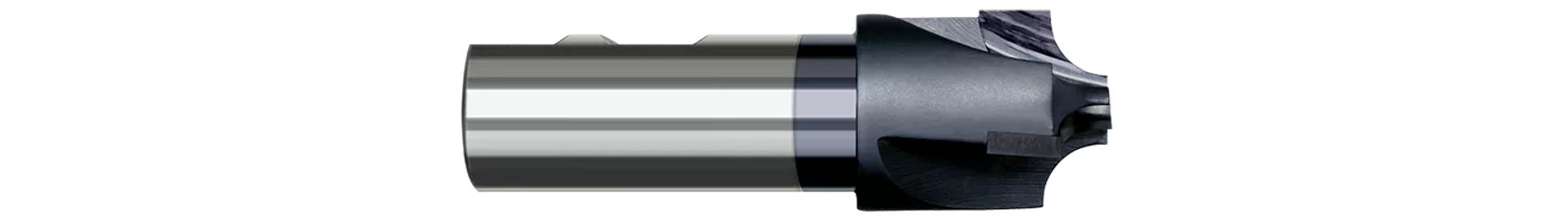

Harvey Tool
45016-C3
HT - 45016-C3
Specifications
| Shank Diameter (Inch) | 3/4 |
|---|---|
| Overall Length (Inch) | 3-1/4 |
| Length Of Cut (Inch) | 0.26 |
| Coating/Finish | C3 |
| Number Of Flutes | 3 |
| Short Description | 0.2500" (1/4) Radius x 0.4060" (13/32) Pilot DIA - 5° Flare - 3 FL - AlTiN Coated |
| Long Description | 0.2500" (1/4) Radius x 0.4060" (13/32) Pilot DIA Carbide Tipped 5° Flare Corner Rounding End Mill, 3 Flutes, AlTiN Coated |
| Head Diameter | 1 |
| Head Diameter (Fraction) | 1 |
| Pilot Diameter (Decimal) | 0.41 |
| Pilot Diameter (Fraction) | 13/32 |
| Pilot Flare | 5 |
| Radius (Decimal) | 0.25 |
| Radius (Fraction) | 1/4 |
| Shoulder Flare | 5 |
| Base Item Number | 45016-C3 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.7500" (3/4) |
| Weight | 0.417 |
| Overall Length | 3.2500" (3-1/4) |
| Profile | Corner Rounder |
| Metric | N |
| Length of Cut | 0.2550" |
| Radius | 0.2500" (1/4) |
