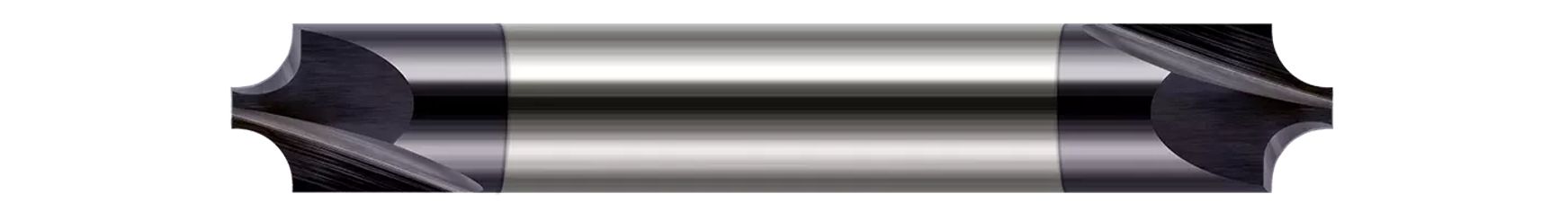

Harvey Tool
46008-C1
HT - 46008-C1
Specifications
| Shank Diameter (Inch) | 1/8 |
|---|---|
| Overall Length (Inch) | 1-1/2 |
| Coating/Finish | C1 |
| Number Of Flutes | 2 |
| Short Description | 0.0080" Radius x 0.0470" (3/64) Pilot DIA - DE - 2 FL - TiN Coated |
| Long Description | 0.0080" Radius x 0.0470" (3/64) Pilot DIA Carbide Corner Rounding End Mill DE, 2 Flutes, TiN Coated |
| Pilot Diameter (Fraction) | 3/64 |
| Radius (Decimal) | 0.008 |
| Double Ended | Yes |
| Base Item Number | 46008-C1 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Profile | Corner Rounder |
| Metric | N |
| Radius | 0.0080" |
