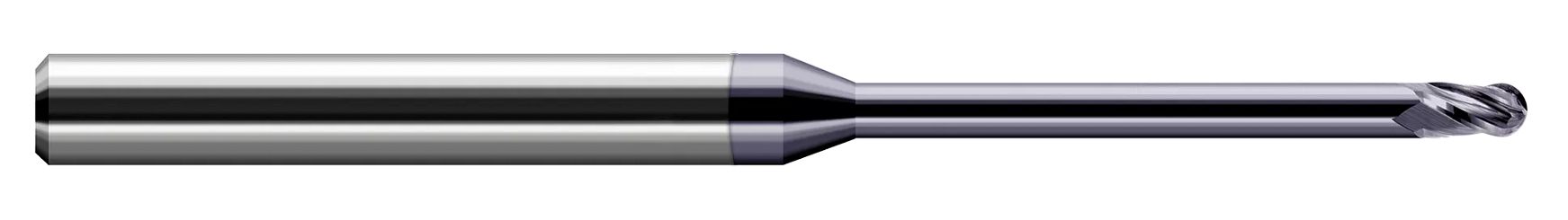

Harvey Tool
49247-C3
HT - 49247-C3
Specifications
| Coating/Finish | C3 |
|---|---|
| Overall Length (Inch) | 2-1/2 |
| Length Of Cut (Inch) | 0.07 |
| Shank Size (Inch) | 1/8 |
| Number Of Flutes | 3 |
| Neck Diameter (Decimal) | 0.05 |
| Shank Diameter | 0.1250" (1/8) |
| Overall Length | 2-1/2 Inch |
| Length of Cut | 0.07 Inch |
| Shank Size | 1/8 Inch |
| Metric | No |
| Cutter Diameter (Decimal) | 0.05 |
| Cutter Diameter (Fraction) | 3/64 |
| LOC Multiple | 1.5x |
| Overall Reach (Decimal) | 0.71 |
| Reach Multiple | 15x |
| Base Item Number | 49247-C3 |
| Neck Diameter (Inch) | 0.05 |
| Product Type | Industrial Supplies |
| Weight | 0.013 |
| Cutter Diameter | 0.0470" (3/64) |
| Profile | Ball |
| Neck Diameter | 0.0455" |
