Harvey Tool
51439

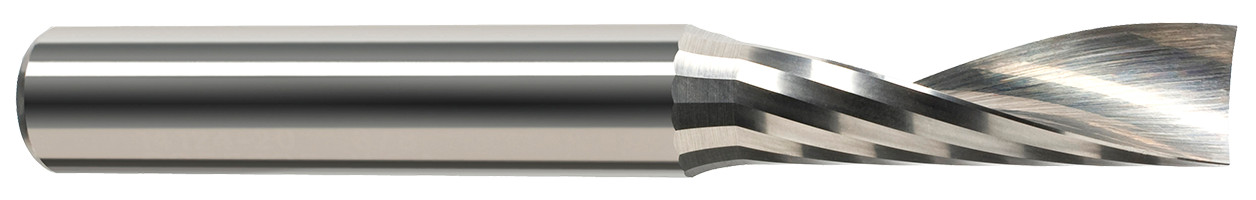

End Mill for Plastics - Single Flute - Square
Specifications
| Long Description | 0.0394" (1 mm) Cutter DIA x 0.1170" Length of Cut Carbide Square Upcut End Mill for Plastic, 1 Flute |
|---|---|
| Short Description | 1 FL - 0.0394" (1 mm) Cutter DIA x 0.1170" LOC |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 1 |
| LOC Multiple | (3x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0394" (1 mm) |
| Profile | Square |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.1170" |
