Harvey Tool
52932-C4

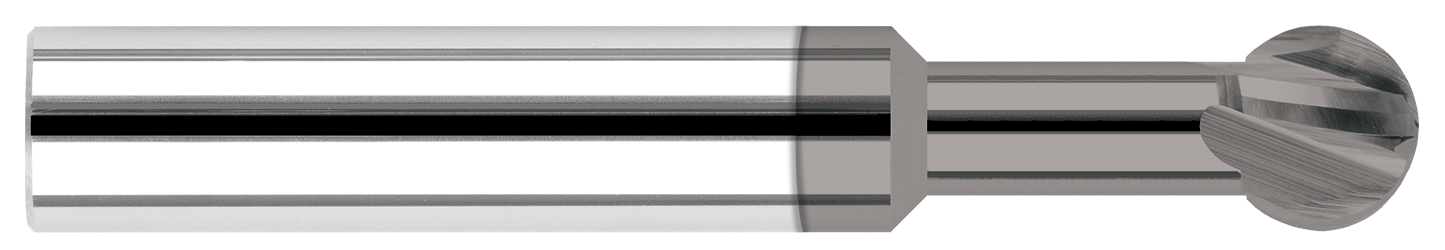

Undercutting End Mill - 270°
Specifications
| Type | I |
|---|---|
| Long Description | 0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Neck Length x 270° Carbide Undercutting End Mill, 4 Flutes, Amorphous Diamond Coated |
| Short Description | 0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Neck Length x 270° Wrap Angle - 4 FL - Amorphous Diamond Coated |
| Shank Diameter | 0.5000" (1/2) |
| Flutes | 4 |
| Weight | 0.249 |
| Neck Angle | 0 |
| Wrap Angle | 270 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.5000" (1/2) |
| Profile | Spherical |
| Metric | N |
| Neck Diameter | 0.3230" |
| Neck Length | 0.5000" (1/2) |
| Coating | C4 |
| Length of Cut | 0.4270" |
| Radius | 0.2500" (1/4) |
