Harvey Tool
54250
HT - 54250
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Diameter (Inch) | 0.18 |
| Length Of Cut (Inch) | 0.04 |
| Coating/Finish | UN |
| Neck Diameter (Decimal) | 0.12 |
| Short Description | #1/4 - 0.1800" Cutter DIA x 1.0000" (1) Reach - 4 FL |

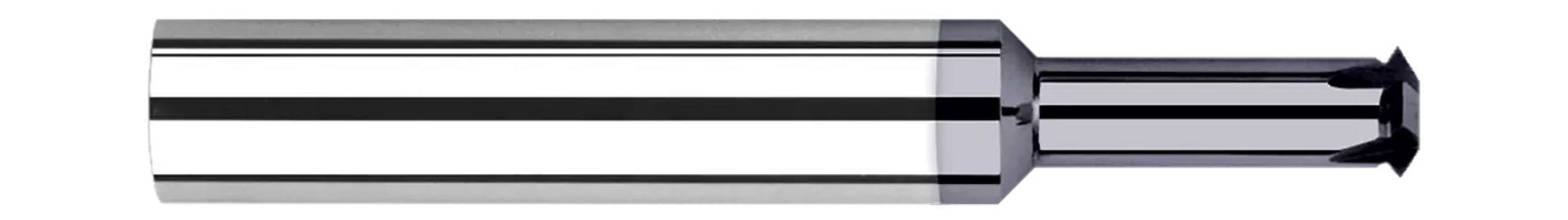

| Long Description | 0.1800" Cutter DIA x 1.0000" (1) Reach Carbide Single Form #1/4 Thread Milling Cutter, 4 Flutes |
| Shank Size | 1/4 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.25 |
| Number Of Flutes | 4 |
| Angle per Side | 30 Degrees |
| Metric | No |
| Size | 1/4 |
| Max Depth of Thread (Decimal) | 1 |
| Max Depth of Thread (Fraction) | 1 |
| Base Item Number | 54250 |
| Neck Diameter (Inch) | 0.12 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.2500" (1/4) |
| Weight | 0.042 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1800" |
| Profile | Single Form |
| Neck Diameter | 0.1150" |
| Length of Cut | 0.0370" |
