Harvey Tool
55705-C3
HT - 55705-C3
Specifications
| Shank Diameter (Inch) | 1/8 |
|---|---|
| Overall Length (Inch) | 1-1/2 |
| Coating/Finish | C3 |
| Number Of Flutes | 2 |
| Short Description | 0.0050" Radius x 0.0200" (.5 mm) Pilot DIA x 0.2500" (1/4) Reach - 5° Flare - 2 FL - AlTiN Coated |

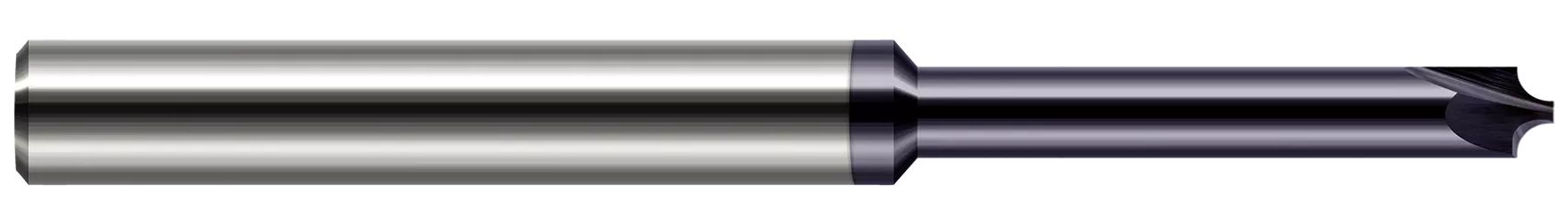

| Long Description | 0.0050" Radius x 0.0200" (.5 mm) Pilot DIA x 0.2500" (1/4) Reach Carbide 5° Flare Corner Rounding End Mill, 2 Flutes, AlTiN Coated |
| Neck Diameter (Decimal) | 0.04 |
| Neck Diameter (Fraction) | 1/32 |
| Overall Reach (Decimal) | 0.25 |
| Overall Reach (Fraction) | 1/4 |
| Pilot Diameter (Decimal) | 0.02 |
| Pilot Diameter (Metric) | 0.5 |
| Pilot Flare | 5 |
| Radius (Decimal) | 0.005 |
| Reach Multiple | 8x |
| Shoulder Flare | 5 |
| Base Item Number | 55705-C3 |
| Neck Diameter (Inch) | 0.04 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Profile | Corner Rounder |
| Metric | N |
| Neck Diameter | 0.0310" (1/32) |
| Radius | 0.0050" |
