Harvey Tool
56416-C4

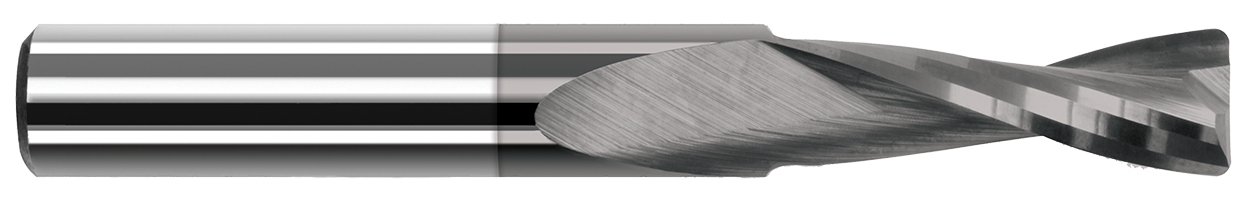

End Mill for Plastics - 2 Flute - Corner Radius
Specifications
| Corner Radius | 0.0150" (1/64) |
|---|---|
| Short Description | 2 FL - 0.2500" (1/4) Cutter DIA x 0.0150" (1/64) Radius x 0.7500" (3/4) LOC - Amorphous Diamond Coated |
| Overall Length | 2.5000" (2-1/2) |
| Long Description | 0.2500" (1/4) Cutter DIA x 0.0150" (1/64) Radius x 0.7500" (3/4) Length of Cut Carbide Corner Radius End Mill for Plastic, 2 Flutes, Amorphous Diamond Coated |
| Metric | N |
| Length of Cut | 0.7500" (3/4) |
| LOC Multiple | (3x) |
| Coating | C4 |
| Weight | 0.051 |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 2 |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Corner Radius |
