Harvey Tool
56520-C8
HT - 56520-C8
Specifications
| Overall Length (Inch) | 1-1/2 |
|---|---|
| Diameter (Inch) | 0.09 |
| Length Of Cut (Inch) | 0.1 |
| Coating/Finish | C8 |
| Corner Radius (Decimal) | 0.02 |
| Short Description | 3 FL - 0.0850" Cutter DIA x 0.0150" (1/64) Radius x 0.1000" LOC - TiB2 Coated |

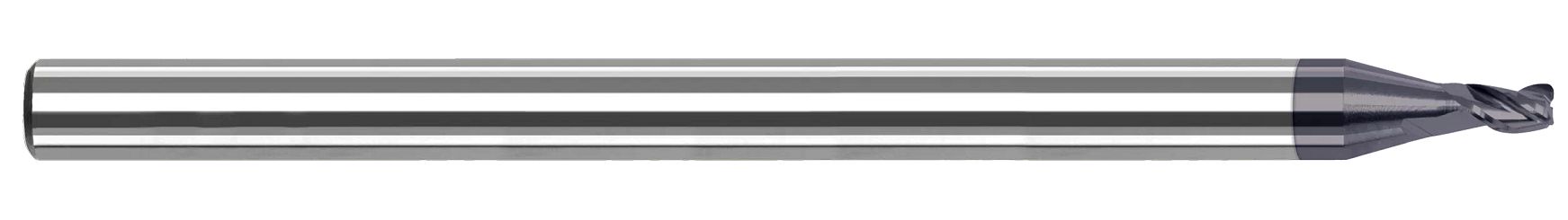

| Long Description | 0.0850" Cutter DIA x 0.0150" (1/64) Radius x 0.1000" Length of Cut Carbide O-Ring Slotting End Mill, 3 Flutes, TiB2 Coated |
| Shank Size | 1/8 Inch |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 3 |
| Corner Radius (Fraction) | 1/64 |
| Metric | No |
| Base Item Number | 56520-C8 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0850" |
| Profile | Corner Radius |
| Length of Cut | 0.1000" |
| Corner Radius | 0.0150" (1/64) |
