Harvey Tool
57415-C3

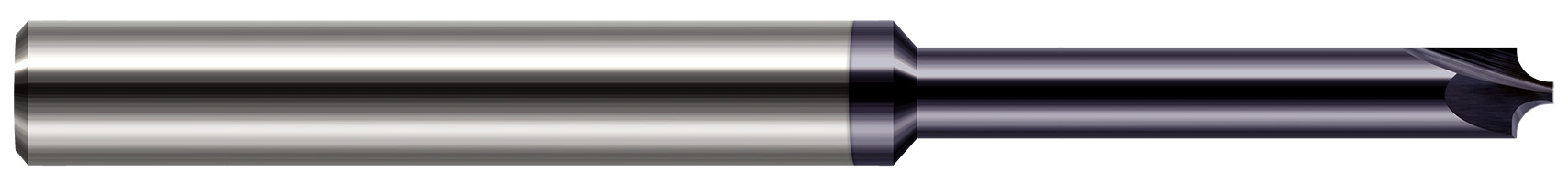

Corner Rounding End Mill - Long Reach - Flared
Specifications
| Short Description | 0.0150" (1/64) Radius x 0.0200" (.5 mm) Pilot DIA x 0.7500" (3/4) Reach - 5° Flare - 2 FL - AlTiN Coated |
|---|---|
| Long Description | 0.0150" (1/64) Radius x 0.0200" (.5 mm) Pilot DIA x 0.7500" (3/4) Reach Carbide 5° Flare Corner Rounding End Mill, 2 Flutes, AlTiN Coated |
| Pilot Flare | 5 |
| Reach Multiple | (8x) |
| Shoulder Flare | 5 |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| Weight | 0.009 |
| Overall Length | 2.0000" (2) |
| Profile | Corner Rounder |
| Metric | N |
| Neck Diameter | 0.0930" (3/32) |
| Coating | C3 |
| Radius | 0.0150" (1/64) |
