Harvey Tool
58160-C3
HT - 58160-C3
Specifications
| Length Of Cut (Inch) | 0.04 |
|---|---|
| Overall Length (Inch) | 2-1/2 |
| Coating/Finish | C3 |
| Short Description | 0.1250" (1/8) Shank DIA x 60° per side - 12 RH Teeth, 6 LH Teeth - AlTiN Coated |
| Shank Size | 1/8 Inch |
| Overall Length | 2.5000" (2-1/2) |
| Shank Size (Decimal) | 0.13 |

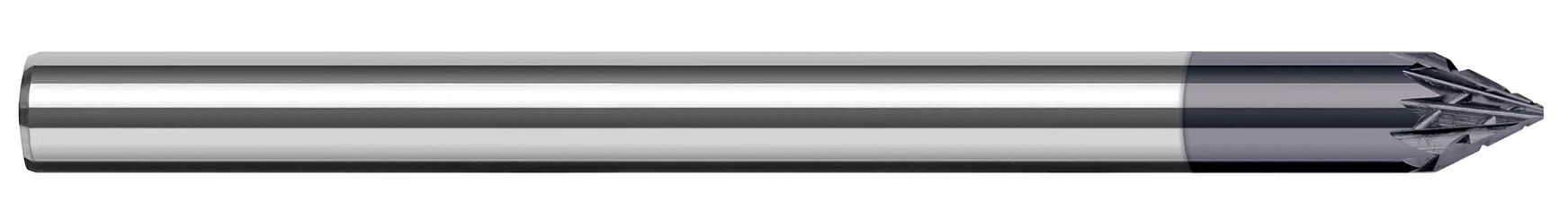

| Long Description | 0.1250" (1/8) Shank DIA x 60° per side Carbide Deburring Chamfer Cutter, 12 RH Teeth, 6 LH Teeth, AlTiN Coated |
| Metric | No |
| Included Angle | 120 Degrees |
| Left Hand Teeth | 6 |
| Minor Diameter (Decimal) | 0.02 |
| Minor Diameter (Metric) | 0.3 |
| Right Hand Teeth | 12 |
| Angle per Side | 60 Degrees |
| Length of Cut | 0.0330" |
| Base Item Number | 58160-C3 |
| Product Type | Industrial Supplies |
| Weight | 0.015 |
| Shank Diameter | 0.1250" (1/8) |
| Profile | Flat |
