Harvey Tool
58708
HT - 58708
Specifications
| Shank Diameter (Inch) | 1/8 |
|---|---|
| Overall Length (Inch) | 1-1/2 |
| Coating/Finish | UN |
| Number Of Flutes | 3 |
| Short Description | 0.0080" Radius x 0.0750" (1.9 mm) Head DIA x 0.3120" (5/16) Neck Length - 5° Flare - 3 FL |

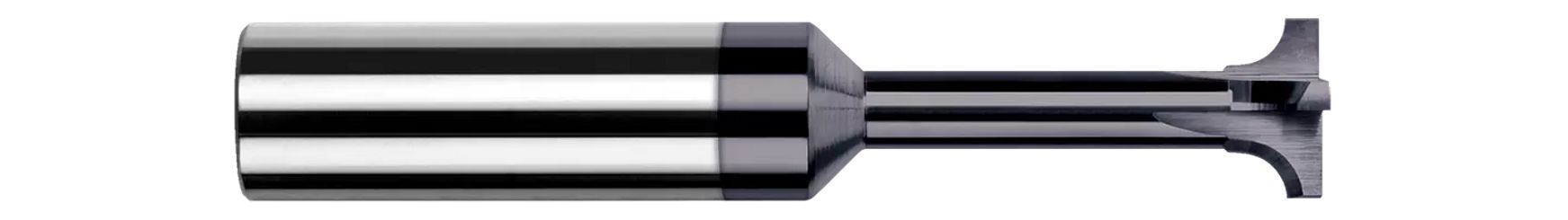

| Long Description | 0.0080" Radius x 0.0750" (1.9 mm) Head DIA x 0.3120" (5/16) Neck Length Carbide 5° Flare Back Corner Rounding End Mill, 3 Flutes |
| Head Diameter | 0.08 |
| Head Diameter (Metric) | 1.9 |
| Neck Diameter (Decimal) | 0.06 |
| Neck Length (Decimal) | 0.32 |
| Neck Length (Fraction) | 5/16 |
| Pilot Flare | 5 |
| Radius (Decimal) | 0.008 |
| Radius Center (Decimal) | 0.03 |
| Reach Multiple | 5x |
| Shoulder Flare | 5 |
| Base Item Number | 58708 |
| Neck Diameter (Inch) | 0.06 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Profile | Corner Rounder |
| Metric | N |
| Neck Diameter | 0.0560" |
| Neck Length | 0.3120" (5/16) |
| Radius | 0.0080" |
