Harvey Tool
58920
HT - 58920
Specifications
| Overall Length (Inch) | 2 |
|---|---|
| Type | II |
| Length Of Cut (Inch) | 0.15 |
| Coating/Finish | UN |
| Short Description | 0.1875" (3/16) Shank DIA x 0.0200" Radius x 60° included - 1 FL |

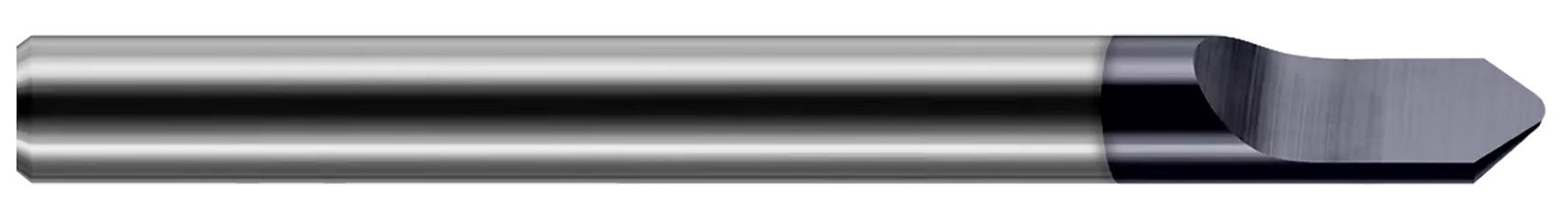

| Long Description | 0.1875" (3/16) Shank DIA x 0.0200" Radius x 60° included Carbide Radius Engraver, 1 Flute |
| Metric | No |
| Shank Size | 3/16 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.19 |
| Number Of Flutes | 1 |
| Radius (Decimal) | 0.02 |
| Split Length (Decimal) | 0.38 |
| Split Length (Fraction) | 3/8 |
| Angle per Side | 30 Degrees |
| Base Item Number | 58920 |
| Product Type | Industrial Supplies |
