Harvey Tool
64612-C3

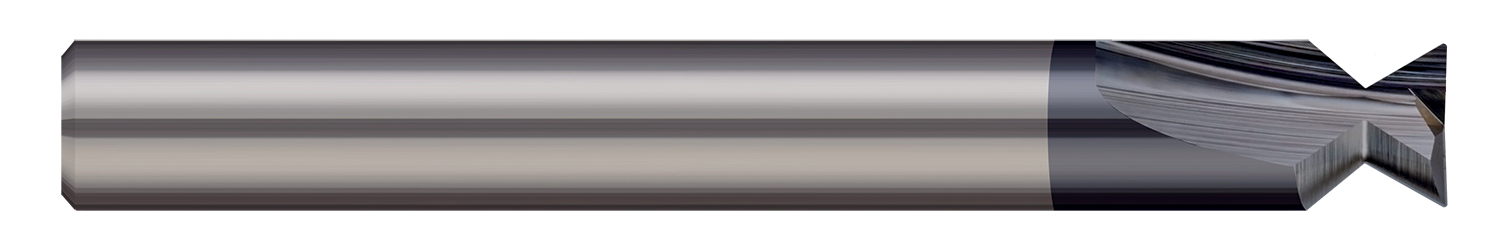

Dovetail Cutter
Specifications
| Short Description | 0.1875" (3/16) Cutter DIA x 0.0050" Radius x 40° included - 2 FL - AlTiN Coated |
|---|---|
| Long Description | 0.1875" (3/16) Cutter DIA x 0.0050" Radius x 40° included Carbide Dovetail Cutter, 2 Flutes, AlTiN Coated |
| Included Angle | 40 |
| Angle per Side | 20 |
| Metric | N |
| Coating | C3 |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 2 |
| Weight | 0.029 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1875" (3/16) |
| Profile | Tip Radius |
| Neck Diameter | 0.1010" |
| Length of Cut | 0.1250" (1/8) |
| Corner Radius | 0.0050" |
