Harvey Tool
687133-C12

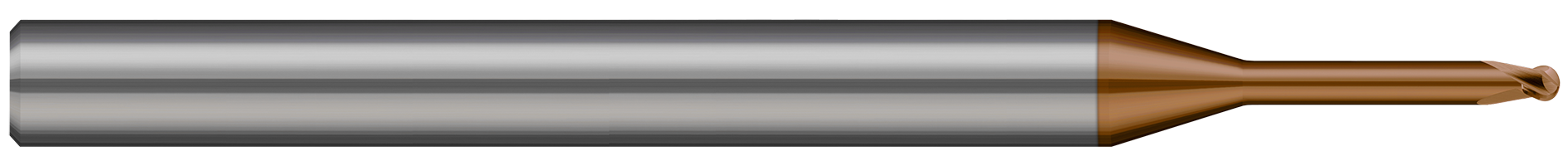

End Mill for Hardened Steels - Tight Tolerance
Specifications
| Long Description | 1.500 mm Cutter DIA x 1.200 mm Length of Cut x 12.000 mm Reach Carbide Tight Tolerance Finisher - Hardened - Ball, 2 Flutes, Ti Hard Nano Coated |
|---|---|
| Short Description | 2 FL - 1.500 mm Cutter DIA x 1.200 mm LOC x 12.000 mm Reach - Ti Hard Nano Coated |
| Shank Diameter | 6.000 mm |
| Flutes | 2 |
| Weight | 0.112 |
| Overall Length | 65.000 mm |
| Cutter Diameter | 1.500 mm |
| Profile | Ball |
| Reach Multiple | (8x) |
| Metric | Y |
| Neck Diameter | 1.440 mm |
| Coating | C12 |
| Length of Cut | 1.200 mm |
| Radius | 0.750 mm |
