Harvey Tool
687357-C12

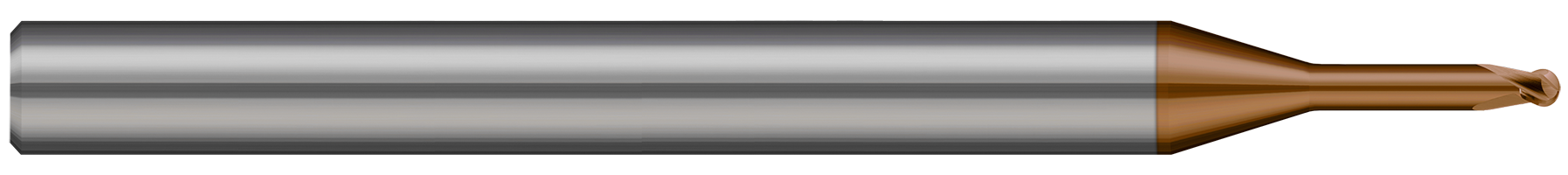

End Mill for Hardened Steels - Tight Tolerance
Specifications
| Long Description | 3.000 mm Cutter DIA x 2.500 mm Length of Cut x 20.000 mm Reach Carbide Tight Tolerance Finisher - Hardened - Ball, 2 Flutes, Ti Hard Nano Coated |
|---|---|
| Short Description | 2 FL - 3.000 mm Cutter DIA x 2.500 mm LOC x 20.000 mm Reach - Ti Hard Nano Coated |
| Shank Diameter | 6.000 mm |
| Flutes | 2 |
| Weight | 0.112 |
| Overall Length | 65.000 mm |
| Cutter Diameter | 3.000 mm |
| Profile | Ball |
| Reach Multiple | (6x) |
| Metric | Y |
| Neck Diameter | 2.900 mm |
| Coating | C12 |
| Length of Cut | 2.500 mm |
| Radius | 1.500 mm |
