Harvey Tool
687445-C12

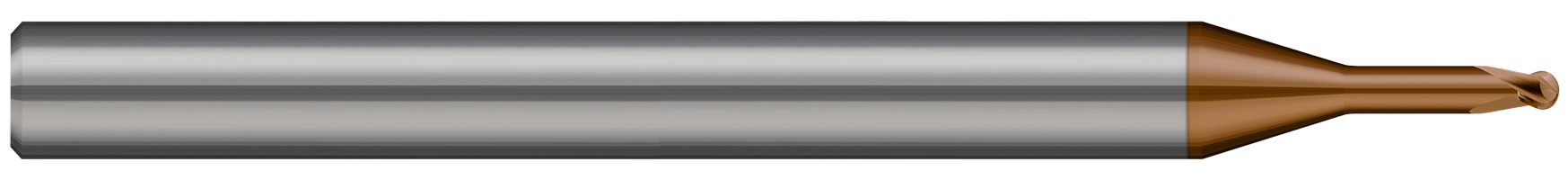

End Mill for Hardened Steels - Tight Tolerance
Specifications
| Long Description | 2.000 mm Cutter DIA x 1.500 mm Length of Cut x 10.000 mm Reach Carbide Tight Tolerance Finisher - Hardened - Ball, 2 Flutes, Ti Hard Nano Coated |
|---|---|
| Short Description | 2 FL - 2.000 mm Cutter DIA x 1.500 mm LOC x 10.000 mm Reach - Ti Hard Nano Coated |
| Shank Diameter | 6.000 mm |
| Flutes | 2 |
| Weight | 0.046 |
| Overall Length | 65.000 mm |
| Cutter Diameter | 2.000 mm |
| Profile | Ball |
| Reach Multiple | (5x) |
| Metric | Y |
| Neck Diameter | 1.920 mm |
| Coating | C12 |
| Length of Cut | 1.500 mm |
| Radius | 1.000 mm |
