Harvey Tool
688713

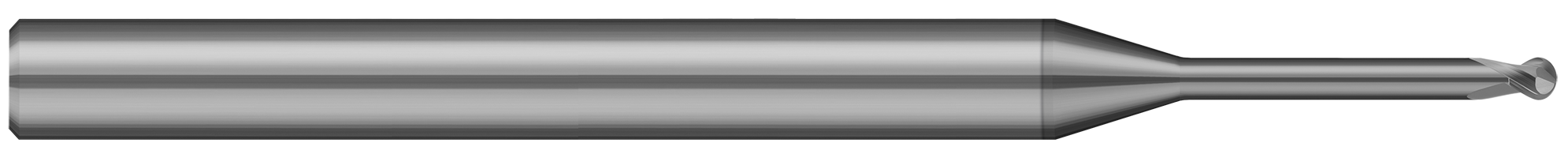

End Mill - CVD - Tight Tolerance
Specifications
| Long Description | 0.600 mm Cutter DIA x 0.800 mm Length of Cut x 6.000 mm Reach Carbide Ball End Mill, 2 Flutes, CVD Diamond |
|---|---|
| Short Description | 2 FL - 0.600 mm Cutter DIA x 0.800 mm LOC x 6.000 mm Reach - CVD Diamond |
| Shank Diameter | 3.000 mm |
| Flutes | 2 |
| Weight | 0.024 |
| Overall Length | 55.000 mm |
| Cutter Diameter | 0.600 mm |
| Profile | Ball |
| Reach Multiple | (10x) |
| Metric | Y |
| Neck Diameter | 0.550 mm |
| Coating | C11 |
| Length of Cut | 0.800 mm |
| Radius | 0.300 mm |
