Harvey Tool
689609-C4

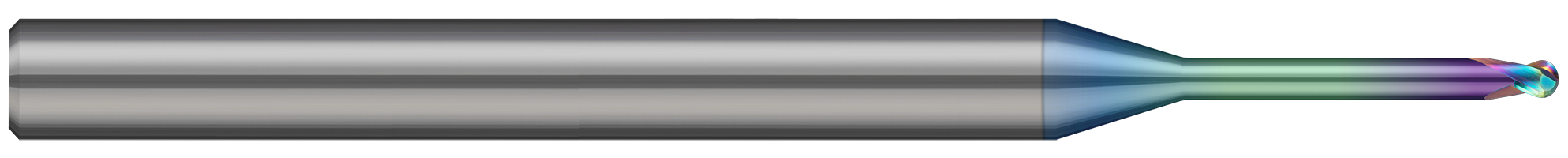

End Mill for Aluminum - Tight Tolerance
Specifications
| Long Description | 0.400 mm Cutter DIA x 0.300 mm Length of Cut x 4.000 mm Reach Carbide Tight Tolerance Finisher - Al - Ball, 2 Flutes, Amorphous Diamond Coated |
|---|---|
| Short Description | 2 FL - 0.400 mm Cutter DIA x 0.300 mm LOC x 4.000 mm Reach - Amorphous Diamond Coated |
| Shank Diameter | 4.000 mm |
| Flutes | 2 |
| Weight | 0.038 |
| Overall Length | 50.000 mm |
| Cutter Diameter | 0.400 mm |
| Profile | Ball |
| Reach Multiple | (10x) |
| Metric | Y |
| Neck Diameter | 0.370 mm |
| Coating | C4 |
| Length of Cut | 0.300 mm |
| Radius | 0.200 mm |
