Harvey Tool
692745-C3

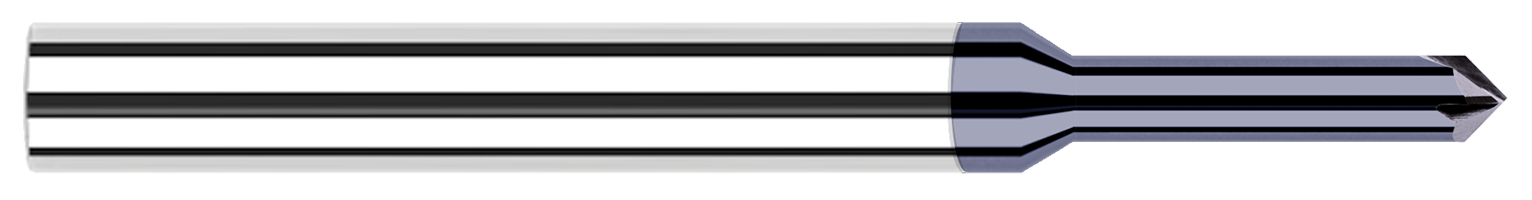

Chamfer Cutter - Pointed - Long Reach
Specifications
| Type | I |
|---|---|
| Short Description | 0.0470" (3/64) Neck DIA x 0.2500" (1/4) Reach x 45° per side - 4 FL - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Long Description | 0.0470" (3/64) Neck DIA x 0.2500" (1/4) Reach x 45° per side Carbide Pointed Chamfer Cutter, 4 Flutes, AlTiN Coated |
| Flutes | 4 |
| Weight | 0.015 |
| Overall Length | 2.5000" (2-1/2) |
| Profile | Pointed |
| Reach Multiple | (5x) |
| Metric | N |
| Neck Diameter | 0.0470" (3/64) |
| Coating | C3 |
| Length of Cut | 0.0240" |
| Angle per Side | 45 |
| Included Angle | 90 |
