Harvey Tool
693704-C3

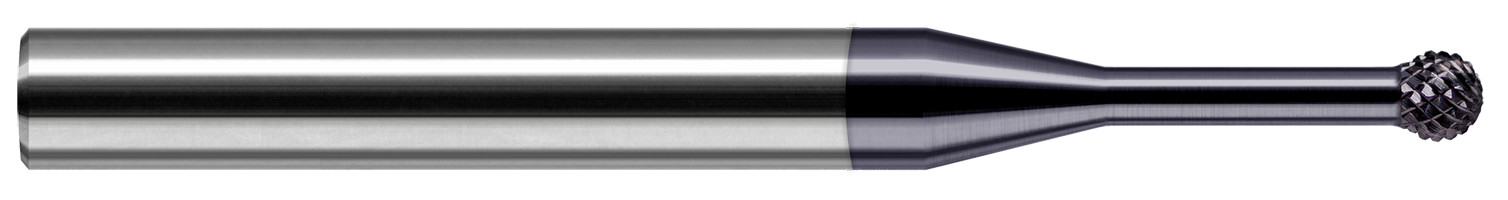

Undercutting End Mill - 270° Deburring Undercut
Specifications
| Long Description | 0.0620" (1/16) Cutter DIA x 0.3750" (3/8) Neck Length x 270° Carbide Deburring Undercut End Mill, 15 RH Teeth, 12 LH Teeth, AlTiN Coated |
|---|---|
| Short Description | 0.0620" (1/16) Cutter DIA x 0.3750" (3/8) Neck Length x 270° Wrap Angle - 15 RH Teeth, 12 LH Teeth - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.007 |
| Wrap Angle | 270 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0620" (1/16) |
| Profile | Spherical |
| Metric | N |
| Neck Diameter | 0.0320" |
| Neck Length | 0.3750" (3/8) |
| Coating | C3 |
| Length of Cut | 0.0530" |
| Right Hand Teeth | 15 |
| Left Hand Teeth | 12 |
| Radius | 0.0310" (1/32) |
