Harvey Tool
695812

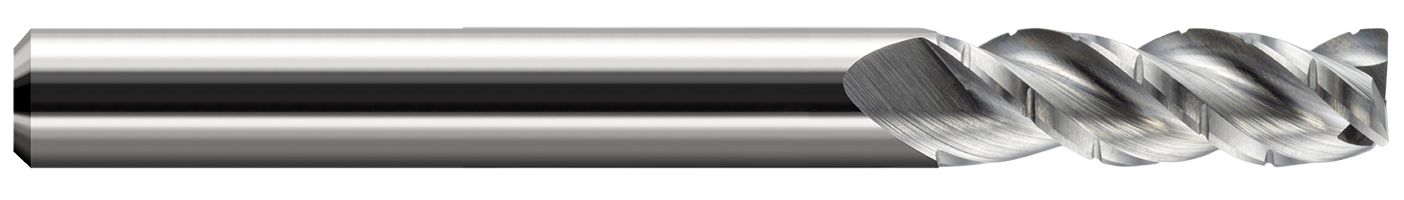

End Mill for Aluminum - Corner Radius
Specifications
| Corner Radius | 0.0050" |
|---|---|
| Short Description | 3 FL - 0.1875" (3/16) Cutter DIA x 0.0050" Radius x 0.5620" (9/16) LOC |
| Overall Length | 2.0000" (2) |
| Long Description | 0.1875" (3/16) Cutter DIA x 0.0050" Radius x 0.5620" (9/16) Length of Cut Carbide Corner Radius Chipbreaker End Mill for Aluminum Alloys, 3 Flutes |
| Metric | N |
| Length of Cut | 0.5620" (9/16) |
| LOC Multiple | (3x) |
| Coating | UN |
| Weight | 0.024 |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 3 |
| Cutter Diameter | 0.1875" (3/16) |
| Profile | Corner Radius |
