Harvey Tool
696812-C10

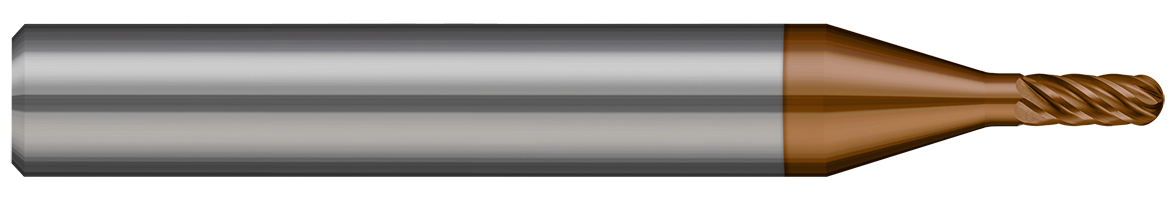

Variable Pitch End Mill for Titanium Alloys - Ball
Specifications
| Short Description | 6 FL - 0.1870" (3/16) Cutter DIA x 0.5700" LOC - Ti-Nano Coated |
|---|---|
| Shank Diameter | 0.2500" (1/4) |
| Overall Length | 2.5000" (2-1/2) |
| Length of Cut | 0.5700" |
| Metric | N |
| LOC Multiple | (3x) |
| Long Description | 0.1870" (3/16) Cutter DIA x 0.5700" Length of Cut Carbide Ball End Mill for Titanium Alloys, 6 Flutes, Ti-Nano Coated |
| Weight | 0.123 |
| Flutes | 6 |
| Cutter Diameter | 0.1870" (3/16) |
| Profile | Ball |
| Coating | C10 |
